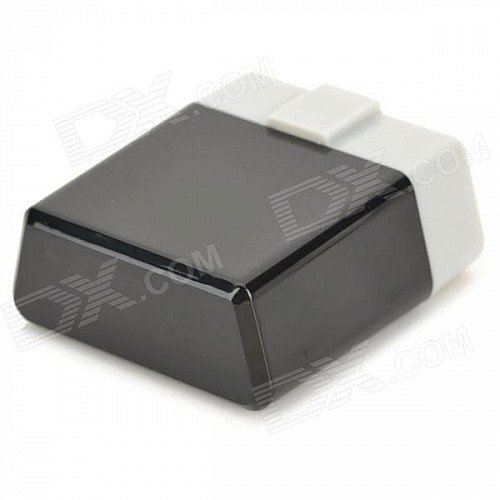

Automobile Diagnosis Equipment Set for Renault Cars - Black
Click Image for Gallery
| General | |
| Quantity | 1Piece |
| Material | ABS |
| Color | Black |
| Specification | |
| Supported Languages | English |
| Version | V1.5 |
| Wireless Bluetooth | Yes |
| Function | Read trouble codes , Check Engine Light (MIL) , Clear trouble codes , Display current sensor data , Caculate fuel oil consumption |
| Readparam | Engine RPM , Intake Air Temperature , Air Flow Rate , Absolute Throttle Position , Oxygen sensor voltages associated short term fuel trims , Fuel System status , Fuel Pressure , Calculated Load Value , Coolant Temperature , Fuel System Status , Vehicle Speed , Short Term Fuel Trim , Long Term Fuel Trim , Intake Manifold Pressure , Timing Advance |
| Diagnose Interface | 16pin |
| Application Supported | Notebook , PC , Smartphone |
| Smartphone Brand Supported | Others , IPHONE , Samsung , Blakberry , LG , Motorola , Nokia , Sony Ericsson |
| Software Platform Supported | Android , PPC（Windows Mobile) , Win XP , Win 7 |
| Technical Parameters | |
| Protocols Supported | ISO15765-4 (CAN) , ISO14230-4 (KWP2000) , ISO9141-2 , J1850 VPW , J1850 PWM |
| Output Protocol | WiFi |
| Indicator LEDs | power supply |
| Baud Rate | 38400bps |
| Compatible Make | Others , BMW , Volvo , Chevrolet , Universal , Honda , Toyota , VW , Benz , Hyundai , Buick , Audi , Ford |
| Other Features | |
| Working Voltage | 12V |
| Working Current | 45mA |
| Dimensions & Weight | |
| Dimensions | 1.77 in x 1.65 in x 0.79 in (4.5 cm x 4.2 cm x 2 cm) |
| Weight | 0.78 oz (22 g) |
