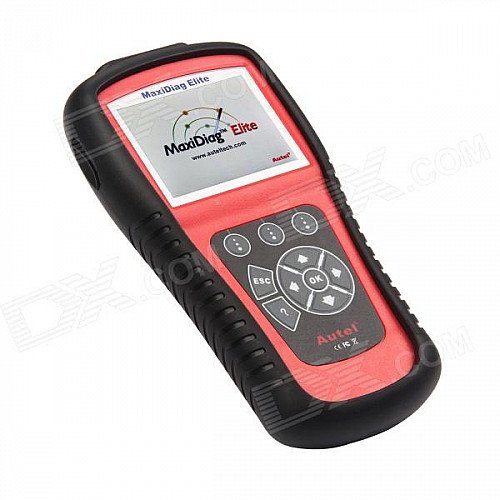

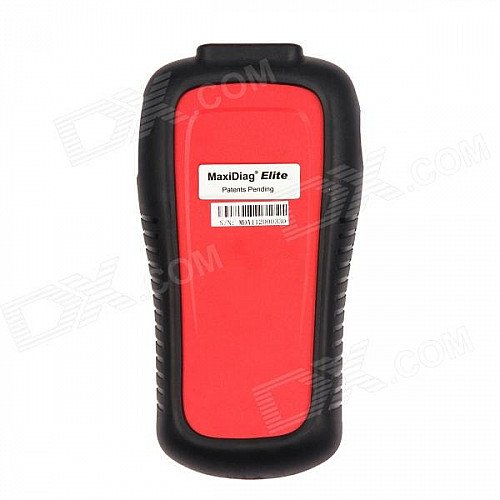

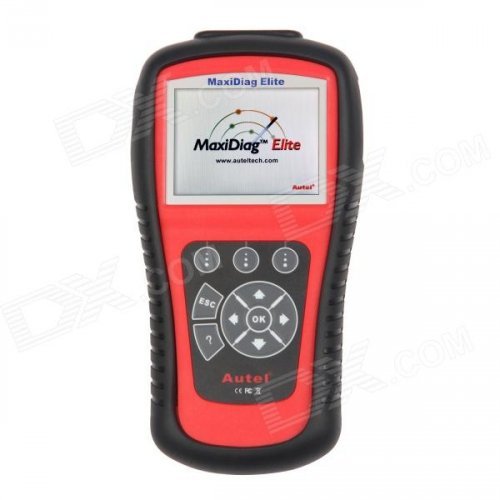

Autel MaxiDiag Elite MD702 All System Scanner Tool - Red + Black
Click Image for Gallery
It reads and clears trouble codes in the basic 4 systems (engine, gear box, ABS and airbag) or all the systems;
Turns off warning lights;
Reads live datastream and freeze frame;
Supports all 10 test modes of the latest J1979 OBD II test specs,including Read Codes, Erase Codes, Live Data, Freeze Frame,I/M Readiness, O2 Mon.Test, On-Board Mon.Test, Component Test and Vehicle Information;
OBD II code tips guide technicians to the root cause of trouble code faster;
Supports data graphing;
With one year free software upgrade;
Prints data via PC
Turns off warning lights;
Reads live datastream and freeze frame;
Supports all 10 test modes of the latest J1979 OBD II test specs,including Read Codes, Erase Codes, Live Data, Freeze Frame,I/M Readiness, O2 Mon.Test, On-Board Mon.Test, Component Test and Vehicle Information;
OBD II code tips guide technicians to the root cause of trouble code faster;
Supports data graphing;
With one year free software upgrade;
Prints data via PC
| General | |
| Quantity | 1Piece |
| Material | Industrial plastic |
| Color | Black + Red |
| Specification | |
| Supported Languages | English |
| Version | V1.5 |
| Wireless Bluetooth | No |
| Function | Read trouble codes , Check Engine Light (MIL) , Clear trouble codes , Display current sensor data , Caculate fuel oil consumption , Airbag Scan |
| Readparam | Engine RPM , Intake Air Temperature , Air Flow Rate , Fuel System status , Fuel Pressure , Coolant Temperature |
| Diagnose Interface | 16pin |
| Transmt Distance | Nocm |
| Application Supported | Notebook , PC |
| Software Platform Supported | Win XP , Win 7 |
| Screen Size | 8.5 x 8.5cm |
| Technical Parameters | |
| Protocols Supported | ISO15765-4 (CAN) , ISO14230-4 (KWP2000) , ISO9141-2 , J1850 VPW , J1850 PWM |
| Output Protocol | OBD Standard protocol |
| Indicator LEDs | power supply |
| Baud Rate | NObps |
| Compatible Make | Jaguar, Land Rover, Opel, Porsche, Saab, Seat, Skoda, Smart, Vauxhall Maybach , BMW , Volvo , VW , Benz , Audi , Ford |
| Other Features | |
| Cable Length | 152cm |
| Certification | CE |
| Working Voltage | 12V |
| Working Current | 35mA |
| Dimensions & Weight | |
| Dimensions | 8.27 in x 3.94 in x 1.57 in (21 cm x 10 cm x 4 cm) |
| Weight | 11.99 oz (340 g) |
