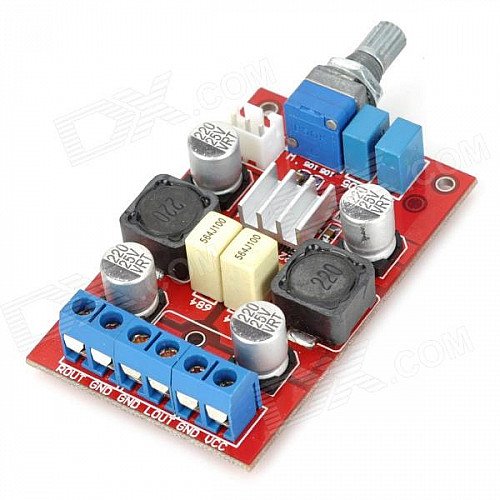

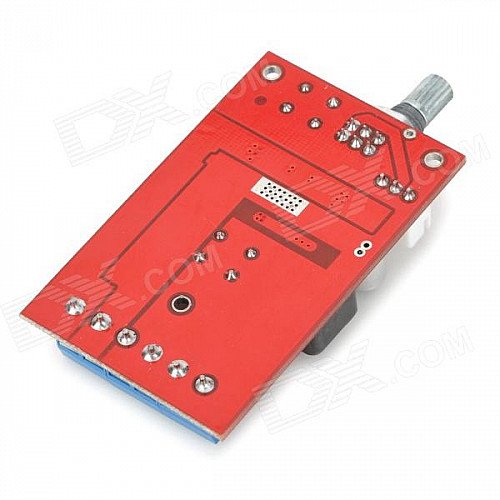

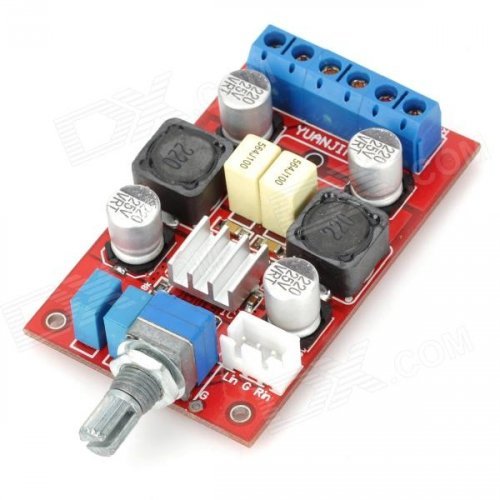

TP-3123 Digital 2 x 20W Amplifier Board w/ TP3123 Heatsink - Red
Click Image for Gallery
| Specification | |
| Channels | 2 |
| Colors | Red |
| Quantity | 1 |
| Type | Mini |
| Signal to Noise Ratio(SNR) | +/-1% dB |
| Material | PCB board |
| Total Power | 20W + 20W |
| Interface | No |
| Sensitivity | More than 4ohm, higher sensitivity |
| Impedance | With 1% precision metal film resistor |
| Packing List | 1 x Digital amplifier board |
| Power Supply | 10~24V |
| Other Features | Working voltage: 10V~24V; Limited voltage: 30V; (not recommand); Max output: 2 x 25W (27V / 4ohm); Board size: 40mm x 65mm; Input pitch: 2.45mm; Output pitch: 5mm; Uses TI TPA3123 digital amplifier chip; Electrolytic capacitors with solid 25V220uF fever capacitor; Reliable and easy operation; Great for DIY project. |
