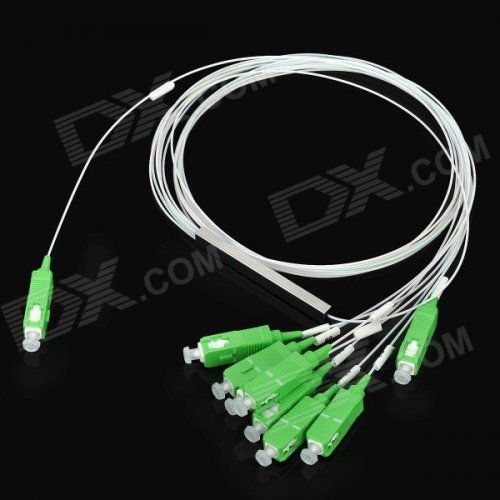

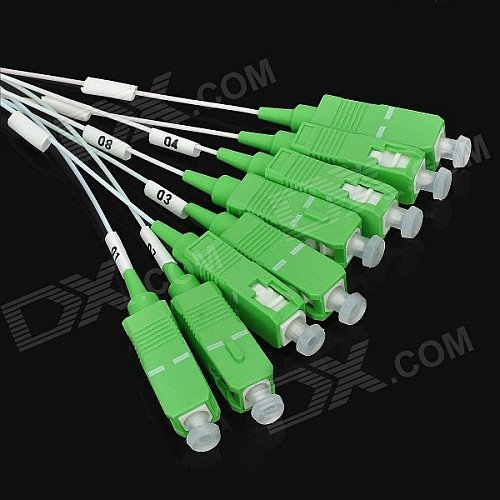

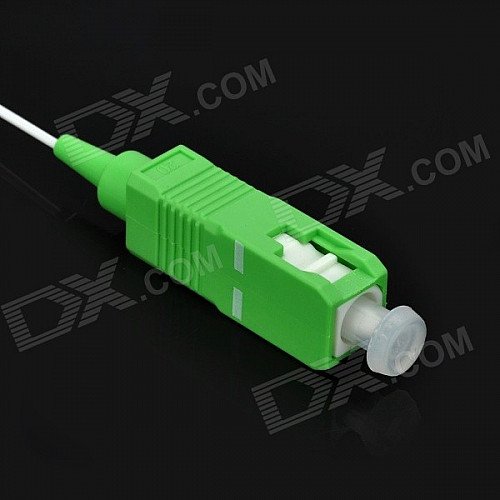

PENGDA SC/APC 1-to-8 PLC Beamsplitter - Silvery White + Green
Click Image for Gallery
- Input / output fiber length: 1.5m; Fiber diameter: 0.9mm
- Working / storage temperature: -40~85'C
- Working barometric pressure: 62~106Kpa
- Working humidity: Relative humidity below 95%
- Service life: >=25 years
- Fiber type: G.657.A
- Working wavelength: 1260nm~1650nm
- Maximum Insertion Loss (dB): ≤9.5
- Port Insertion Loss Uniformity (dB): ≤0.5
- Uniformity between wavelength insertion loss (dB): ≤0.5
- Return Loss (dB): ≥60
- Directivity (dB): ≥60
- Working / storage temperature: -40~85'C
- Working barometric pressure: 62~106Kpa
- Working humidity: Relative humidity below 95%
- Service life: >=25 years
- Fiber type: G.657.A
- Working wavelength: 1260nm~1650nm
- Maximum Insertion Loss (dB): ≤9.5
- Port Insertion Loss Uniformity (dB): ≤0.5
- Uniformity between wavelength insertion loss (dB): ≤0.5
- Return Loss (dB): ≥60
- Directivity (dB): ≥60
| General | |
| Quantity | 1Set |
| Material | Quartz plate, stainless steel tube, flame retardant PVC |
| Color | Silver White + Green |
| Other Features | |
| Certification | ISO9001, TLC |
| Dimensions & Weight | |
| Dimensions | 59.06 in x 0.31 in x 0.31 in (150 cm x 0.8 cm x 0.8 cm) |
| Weight | 1.27 oz (36 g) |
