Super Mini Wi-Fi iCar2 Vehicle Wi-Fi OBD-II Code Diagnostic Tool / Clearer - Black
Click Image for Gallery

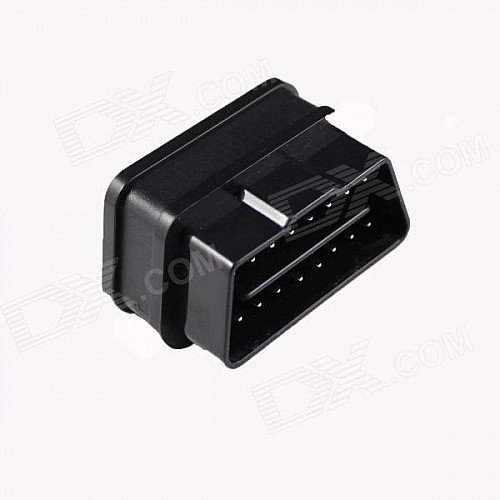

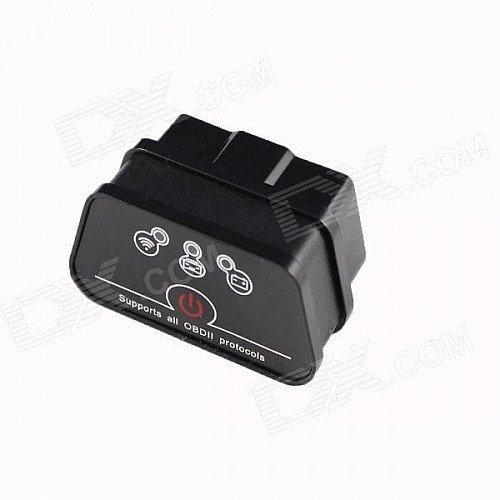

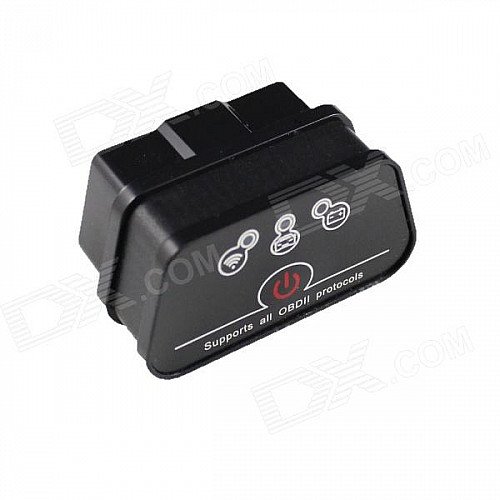

Feature: -Small size, compact structure. Plug and never unplug -Stable wireless connection -No wires or batteries (adapter is powered by the diagnosis size sockets) - Stop communication, wait half an hour, auto sleep -Supports all OBDII protocols Fuction : - The adapter uses the fastest and most reliable ARM chips The device is a small adapter that plugged into the vehicle OBD II-connector.On WiFi,it connects to any computer,tablet or smartphone.With associated diagnostic procedures.Doing these simple operations,you will be able: -Read,erase and display code descriptions problems-both standard and spetskodov manufactures -Measure the fuel consumption. -Display real-time operating performance of the car,such as momentum,vehicle speed,oil pressure,coolant temperature,engine load,intake manifold pressure,throttle position,the values of oxygen sensors,air intake temperature,and more -Turn off the MIL(signal Check-Engine) -Download data to external media in a variety of formats for later printing. -Record various parameters,display graphics in real time,and more. With this OBD professional solution ,you will be able to perform a complete computer diagnosis on car ECU and even deal with minor faults without resorting to service stations.
| General | |
| Quantity | 1Piece |
| Material | PVC |
| Color | Black |
| Specification | |
| Supported Languages | English |
| Version | V1.4b |
| Wireless Bluetooth | No |
| Function | Read trouble codes , Check Engine Light (MIL) , Clear trouble codes , Display current sensor data , Caculate fuel oil consumption |
| Readparam | Air Flow Rate , Coolant Temperature , Fuel System Status , Vehicle Speed , Short Term Fuel Trim , Long Term Fuel Trim |
| Diagnose Interface | 16pin |
| Transmt Distance | N/Am |
| Application Supported | Notebook , Smartphone |
| Smartphone Brand Supported | it supports all WIFI System (ANDROID, PCWINCEIPHONEIPAD) |
| Software Platform Supported | it supports all with Wi-Fi system |
| Screen Size | N/Acm |
| Technical Parameters | |
| Protocols Supported | ISO15765-4 (CAN) , ISO14230-4 (KWP2000) , ISO9141-2 , J1850 VPW , J1850 PWM |
| Output Protocol | WIFI |
| Indicator LEDs | OBD transmit |
| Baud Rate | 38400bps |
| Compatible Make | Cars support protocol |
| Other Features | |
| Cable Length | N/Acm |
| Working Voltage | 12V |
| Working Current | 250mA |
| Dimensions & Weight | |
| Dimensions | 1.77 in x 0.91 in x 1.02 in (4.5 cm x 2.3 cm x 2.6 cm) |
| Weight | 0.81 oz (23 g) |
